D38 Decking Profile
D38 profile is a shallow structural deck, typically used under insulated single ply and multi-layer felt roof systems.
D38 Decking Profile
D38 profile is a shallow structural deck, typically used under insulated single ply and multi-layer felt roof systems.
Typically supplied in plain galvanised or white polyester finish, however other colour options may be available – please contact our sales office for confirmation.
Crimp curving option also available, subject to enquiry.
For further technical information including load span tables, please see the download link.
Profile Dimensions
Need help choosing the right profile?
Call us at 01246 858 222 or contact us
Material Options
| Material | 0.7 mm | 0.9 mm |
|---|---|---|
| Plastisol |  | |
| Polyester |  | |
| PVDF | | |
| Granite HDX | | |
| Galvanised | | |
| Aluzinc | |
Sheet Lengths
Sheets are cut to your specified lengths, subject to the following allowable range:
| Standard sheet length range | 1.0 m to 10.0 m |
| Minimum sheet length* | 0.8 m |
| Maximum sheet length* | 12.0 m** |
| Maximum unsupported length of sheet | 0.5 m |
*Any non-standard sheet lengths may incur additional manufacturing, packaging and handling/delivery charges.
** Sheet lengths up to 14.0 m may be possible, depending on full order details. Please discuss with our sales office prior to order placement.
Curving Options
D38 profile can be used to form a fully curved roof. Curving data as follows:
| Minimum convex self-curve radius | 45.0 m* |
| Minimum crimp curve radius | 0.3 m |
| Maximum length of crimp curved sheet | 6.0 m** |
*The self-curve radius is meant as a guide only as this figure is dependent on material thickness, sheet length and purlin spacings.
** The maximum length of crimp-curved sheets is dependent on the type of curve.
The D38 profile will be manufactured with a minimum straight leg of 150 mm at each end of the sheet. Please contact our sales office to discuss all curved sheet properties prior to order placement.
Downloads
Other Products

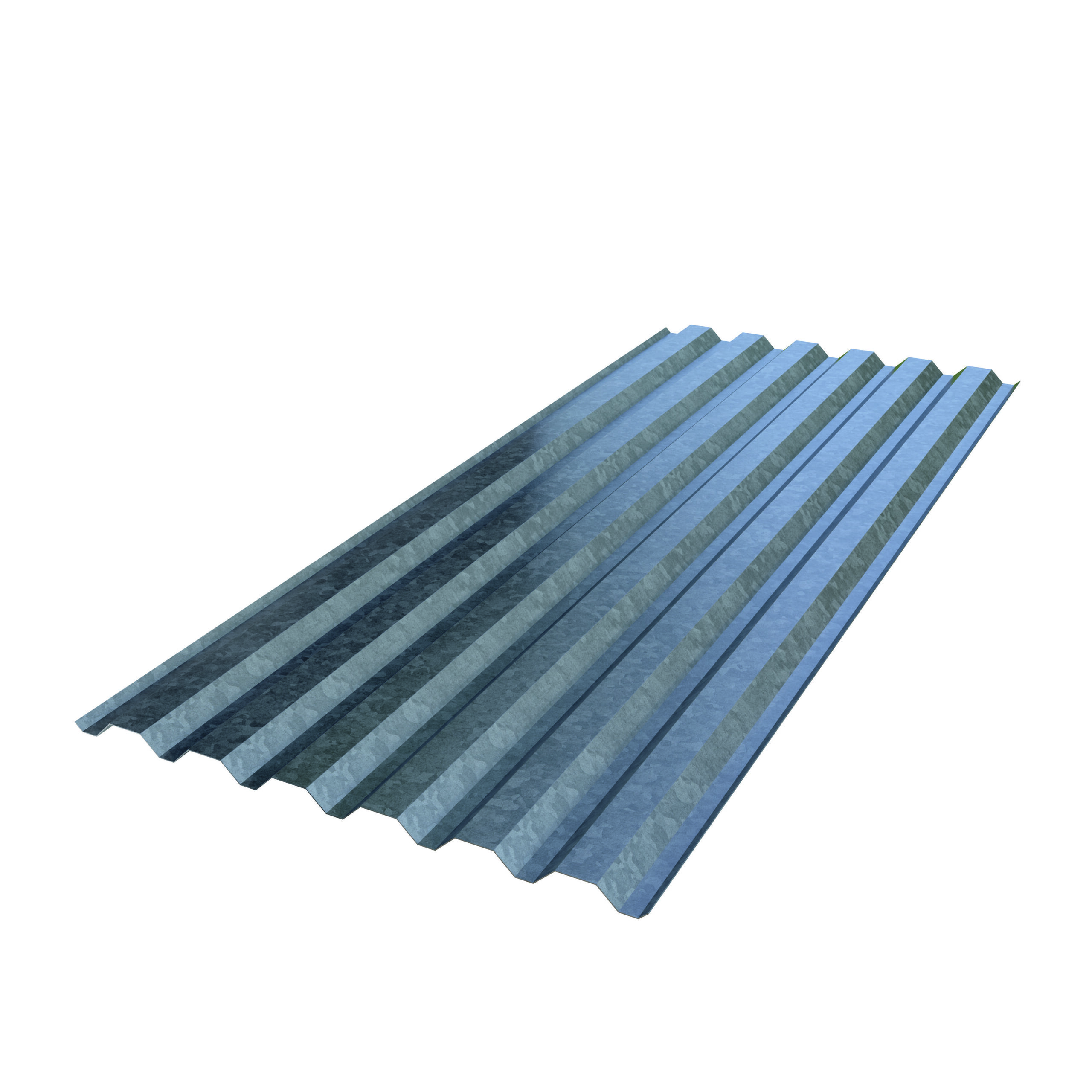

D34 Decking Profile
D34 profile is a shallow structural deck, typically used under insulated single ply and multi-layer felt roof systems.

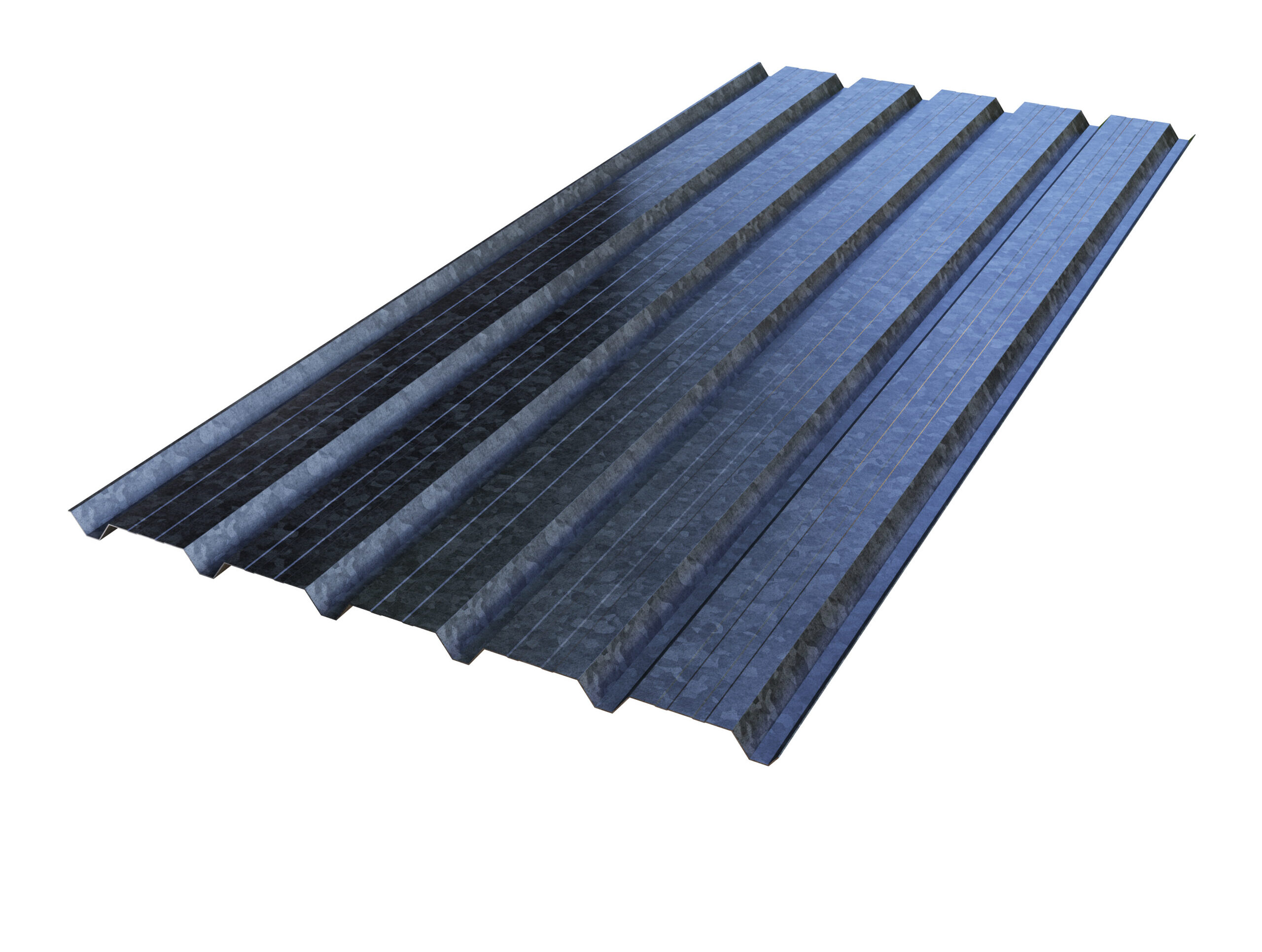

D32 Decking Profile
